Overview
Manual bearing turntables (or lazy susans as they’re often known as) are suitable for static displays that require additional manual rotation. Our wide range of long lasting manual bearing turntables incorporates a variety of sizes, all carefully designed and built to ensure smooth and effortless movement.
Our range of heavy duty manual bearings offer a more robust manual movement.
Specifications
| Product Code | Description | Unit Diameter (mm) | Unit Height (mm) | Unit Weight (kg) |
|---|---|---|---|---|

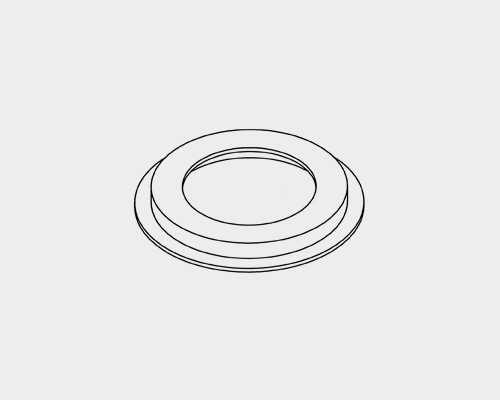

| D-001-0400 | 400mm Diameter Manual Bearing | 400 | 42 | 11 |

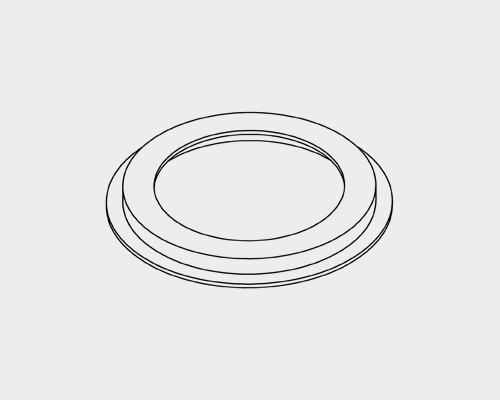

| D-001-0500 | 500mm Diameter Manual Bearing | 500 | 42 | 15 |

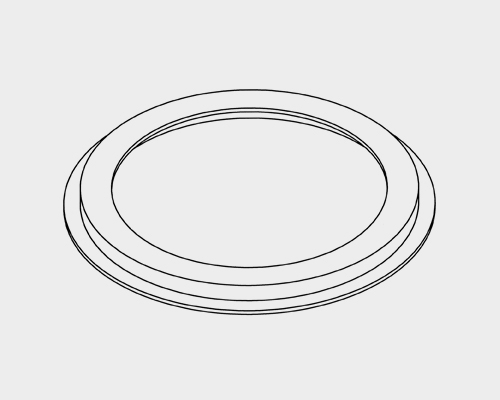

| D-001-0650 | 650mm Diameter Manual Bearing | 650 | 42 | 20 |

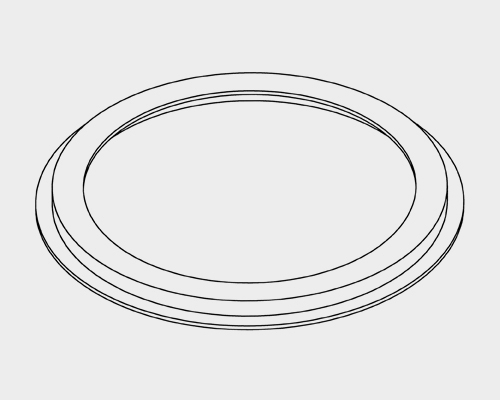

| D-001-0750 | 750mm Diameter Manual Bearing | 750 | 42 | 23 |
| D-001-0850 | 850mm Diameter Manual Bearing | 850 | 42 | 27 |

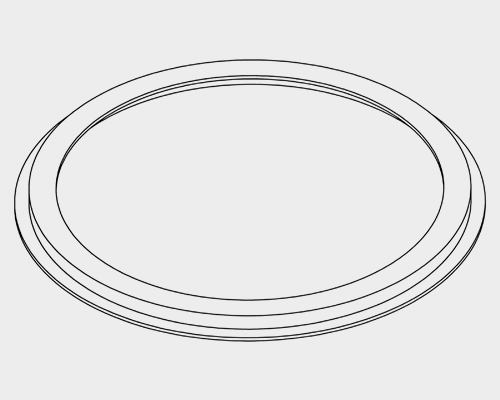

| D-001-0950 | 950mm Diameter Manual Bearing | 950 | 42 | 30 |

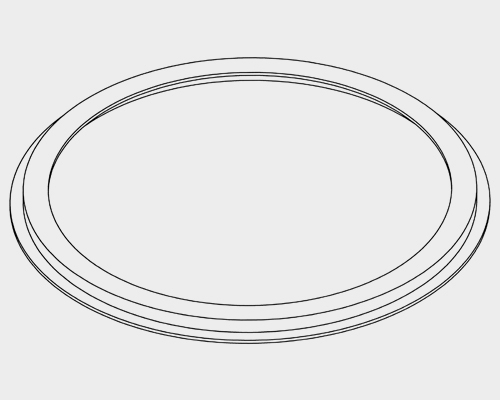

| D-001-1050 | 1050mm Diameter Manual Bearing | 1,050 | 42 | 34 |
Maximum Display Properties
| Product Code | Description | Max. Diameter (mm) | Max. Height (mm) | Max. Weight (kg) |
|---|---|---|---|---|
| D-001-0400 | 400mm Diameter Manual Bearing | 800 | 2,000 | 750 |
| D-001-0500 | 500mm Diameter Manual Bearing | 1,000 | 2,000 | 900 |
| D-001-0650 | 650mm Diameter Manual Bearing | 1,300 | 2,000 | 1,500 |
| D-001-0750 | 750mm Diameter Manual Bearing | 1,500 | 2,000 | 1,800 |
| D-001-0850 | 850mm Diameter Manual Bearing | 1,700 | 2,000 | 2,500 |
| D-001-0950 | 950mm Diameter Manual Bearing | 1,800 | 2,000 | 3,000 |
| D-001-1050 | 1050mm Diameter Manual Bearing | 2,000 | 2,000 | 3,500 |
Additional Information
- Manual rotational speed.
- Clockwise or anti-clockwise rotational direction.
- Maximum display properties assume an evenly distributed load.
- Need something smaller? View our pressed metal manual bearing range.
Operating Instructions
For advised operating instructions, please refer to the product operating instructions / manual for further operating and safety information. If you require additional help, please don’t hesitate to contact us and our sales and technical teams will be more than happy to help. Improper use of this unit may cause damage and harm to yourself, others and the product. Any improper use will also void any product warranty.
